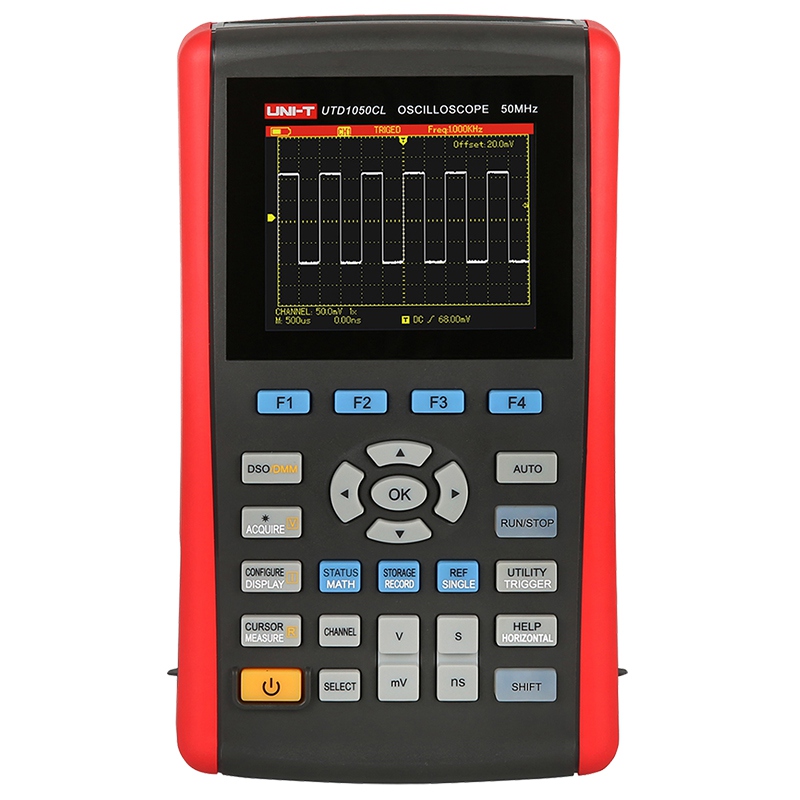

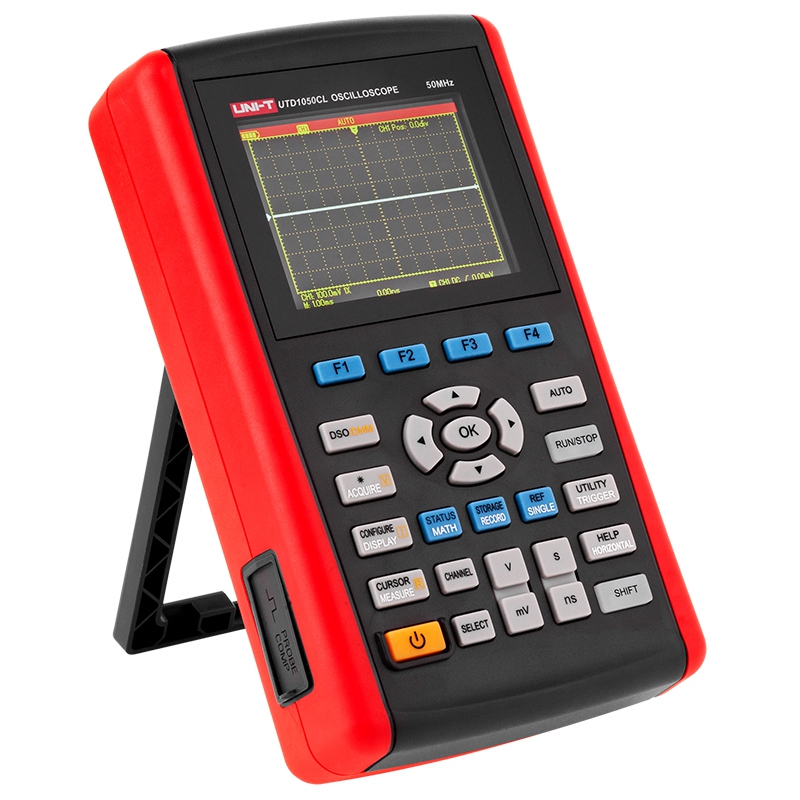

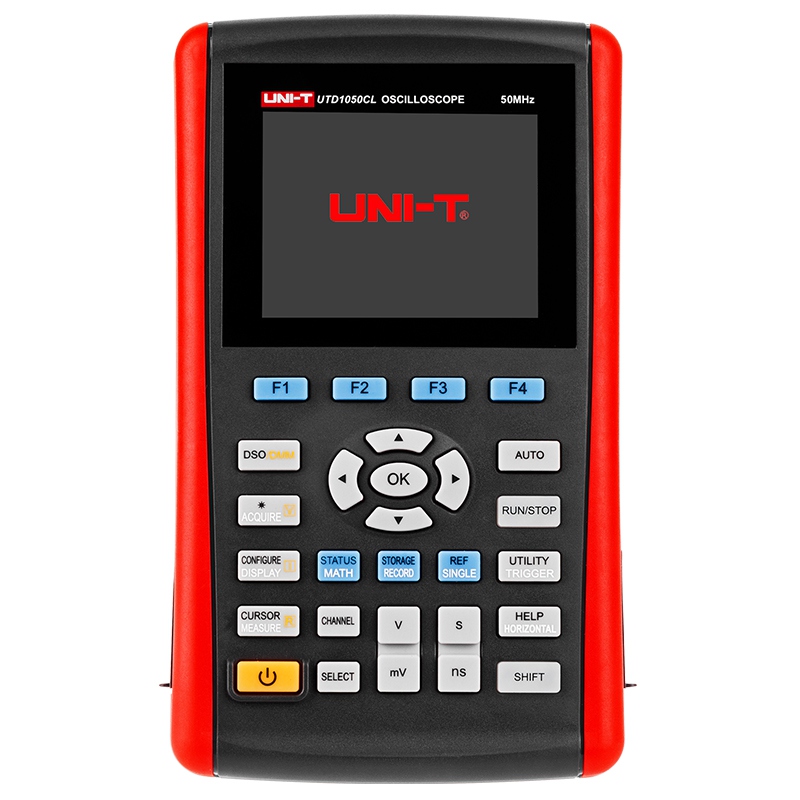

Osciloscop Digital Uni-T UTD1050CL, 50MHz, 200MSa/s, Multimetru Integrat, Mini USB

OSCILOSCOP 50MHZ UTD1050CL UNI-T - 1 canal

Avantaje si functii principale

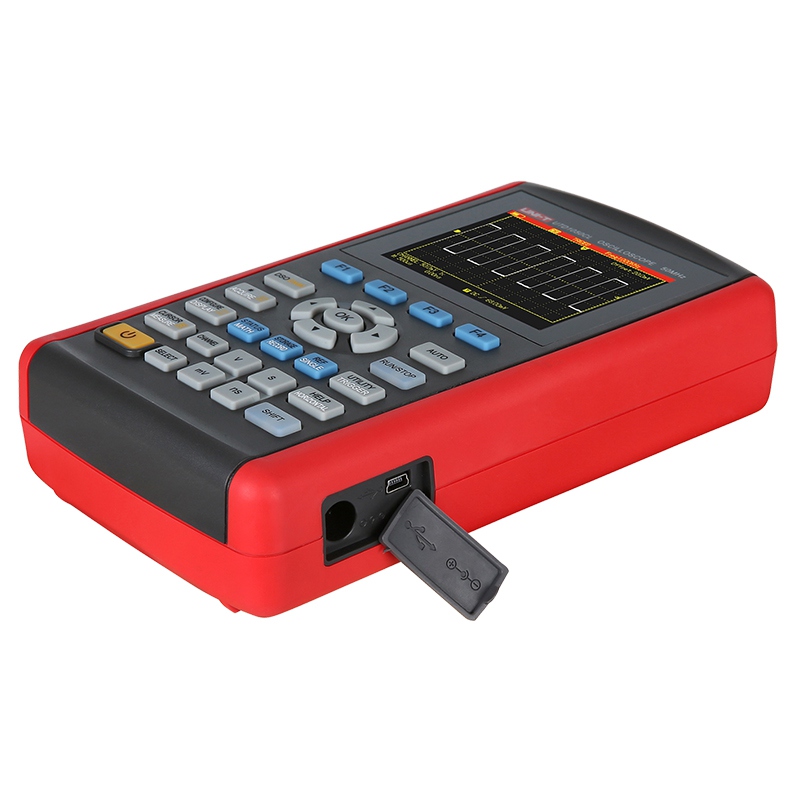

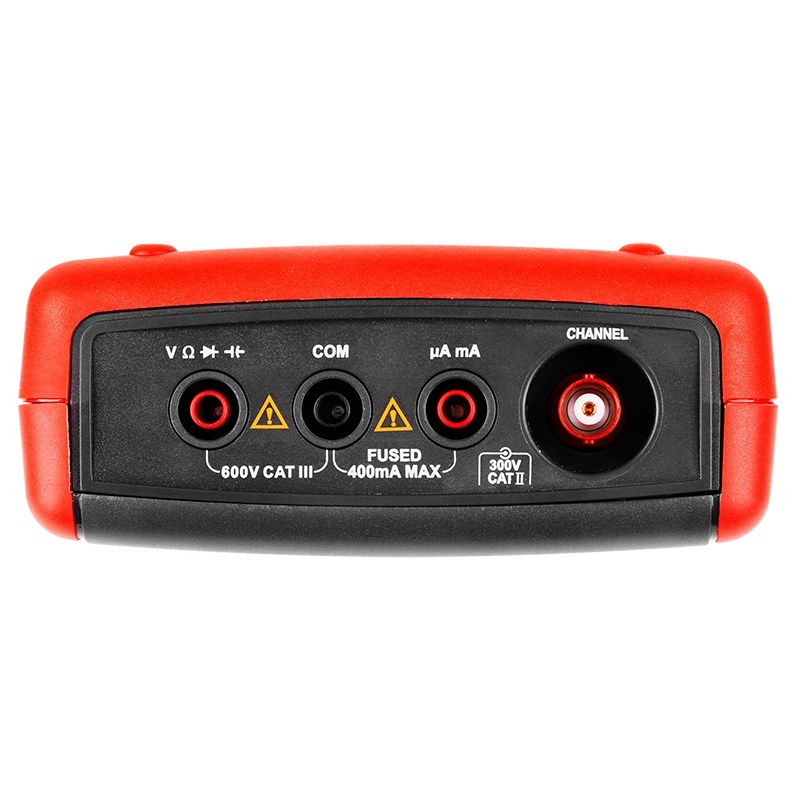

• Interfata: miniUSB
• Capacitate: 51.2 nF / 512 nF / 5.12 µF / 51.20 µF / 100µF; ± (3% + 5)

Specificatii tehnice

• Banda de frecenta: 50 MHz
• Rata de eșantionare: 200 MSa / s
• timp de crestere: <= 7 ns
• Memorare: 12 kpts
• Sensibilitate pe verticala: 5 mV / div ~ 20V / div
• Baza de timp: 5ns / div ~ 50s / div
• Moduri sincronizare: Edge, puls, video, Slope
• Specificatii multimetru:
• Tensiune DC: 400.0mV / 4.000V / 40.00V / 400.0V; ± (1% + 5)
• Tensiune AC: 400.0mV / 4.000V / 40.00V / 400.0V; ± (1,2% + 5)
• Curent DC: 400.0µA / 4000µA; ± (1,2% + 5)
• Curent AC : 400.0µA / 4000µA; ± (2% + 5)
• Rezisten&#539;a:400 ohm /4 kohm /40 kohm /400 kohm /4 Mohm; ± (1,2% + 5) / 40 Mohm; ± (1,5% + 5)
• Capacitate: 51.2 nF / 512 nF / 5.12 µF / 51.20 µF / 100µF; ± (3% + 5)

Caracteristici generale

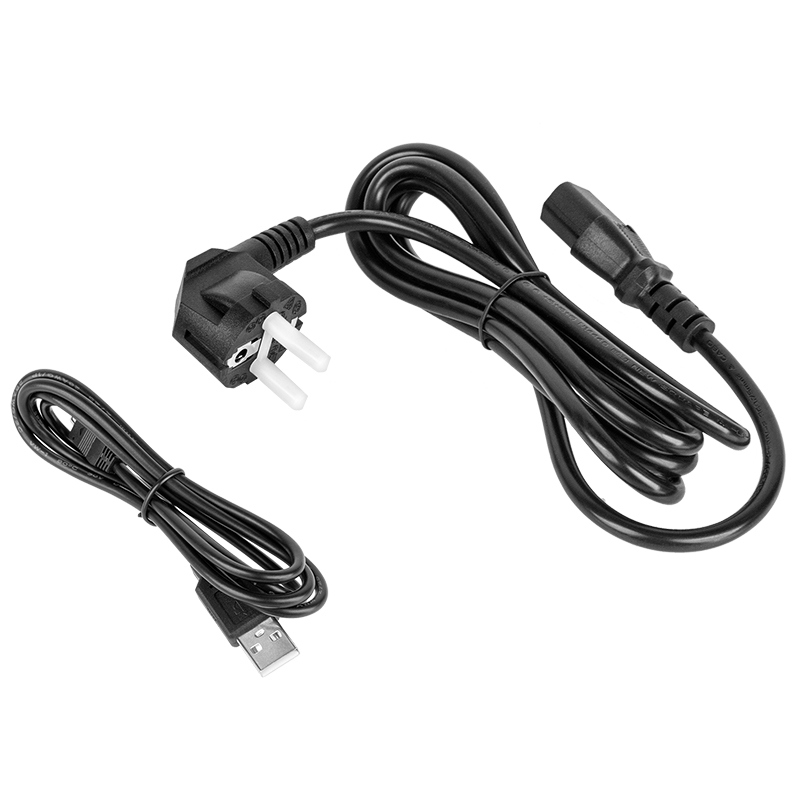

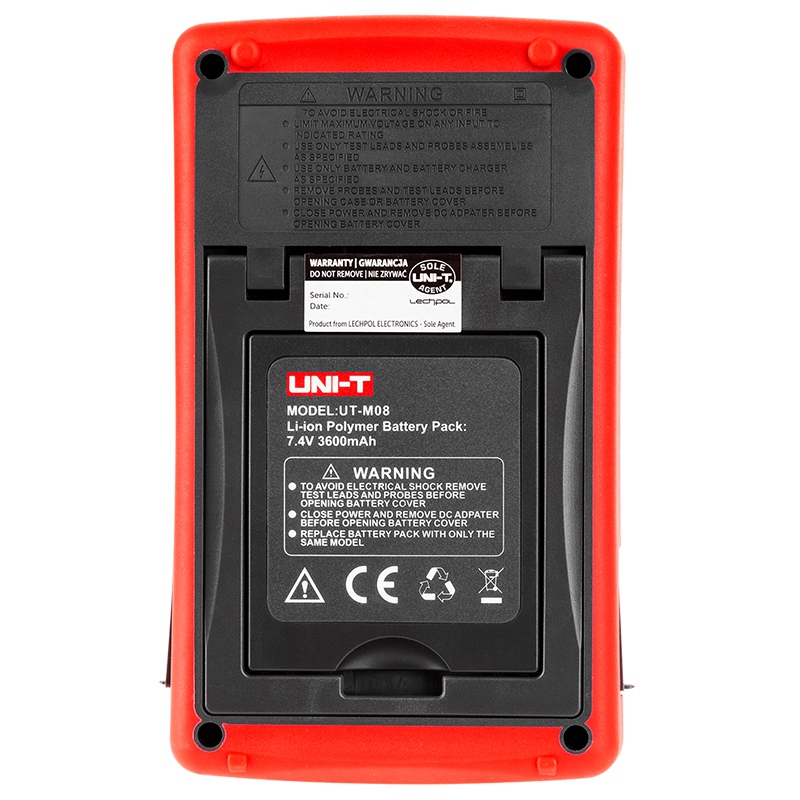

• Alimentare: baterie litiu 7.4V 3600mAh sau prin adaptor AC 100 ~ 240V 50 / 60Hz, ie&#537;ire 9V/4A
• Greutate: 0.9 kg
• Dimensiuni: 199 x 118 x 49 mm
